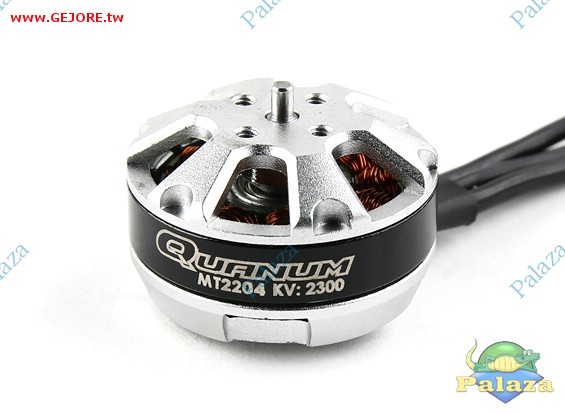

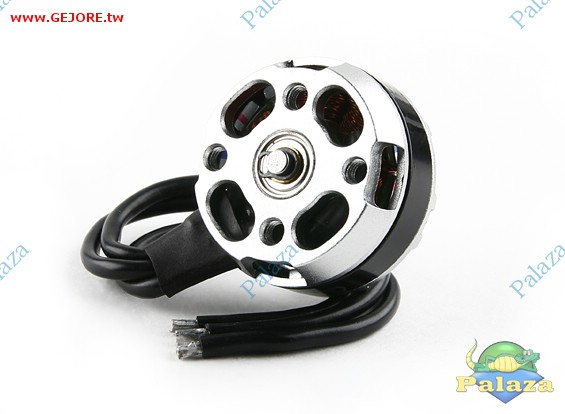

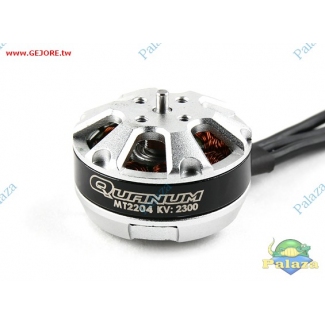

GR6161-04

 。

The MT line uses quality NMB bearings， high pole counts for torque and smooth operation and all have standardized universal mountings in their given size. Quanum has spec&rsquo。d the motors with N42sh magnets and .2mm laminations for optimal efficiency. The MT&rsquo。s also have ample motor wire length for a cut to fit installation， with included bullet connectors and shrink tube. Another great feature is that Quanum spec&rsquo。d all the motors to come with mounting hardware in various lengths， as well as both hub and direct mount propeller options， so installation is a snap.

Each Quanum motor is QC checked for balance， wind， performance and mechanical tolerance. The DYS brand is well known for their BE series and the new spec built MT line will set new standards of value vs performance.

Features:
　&bull。 High Power N42sh magnets
　&bull。 Precision NMB bearings
　&bull。 .2mm laminations for optimal efficiency
　&bull。 Ample cut to length motor wires for a clean install
　&bull。 Direct mount propeller or Hub style compatible

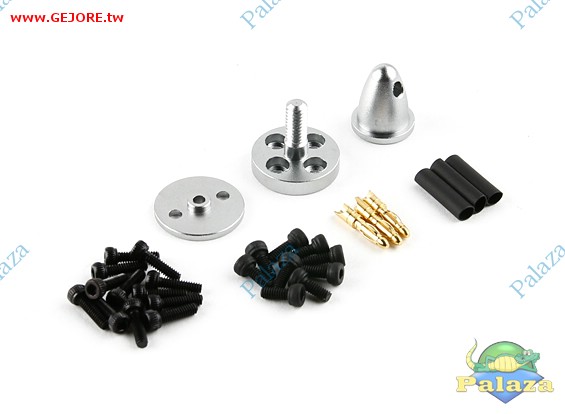

　&bull。 Multi-length mounting hardware included

Specs:
　KV(RPM/V): 2300KV
　Lipo cells: 2S
　Max Power: 69.6W
　Max Amps: 9.4A
　No Load Current: 0.7/7.4V
　Internal Resistance: 0.13ohm
　Number of Poles: 14
　Dimensions(Dia.xL): 27.5*16.5mm
　Motor Shaft: 2mm
　prop shaft: 5mm CW prop adapter
　Weight: 26g
　bolt hole spacing: 16*19 M3
　Lamination thickness: 0.2mm
　Magnets: 42SH
　Wire: 18AWG
　Connector: 3.5mm bullet

 。
