GR6216-11

 。

The Mobius ActionCam video camera has proven to be one of the most popular action cameras on the market today. It's compact size， excellent video quality and affordable price have made it a stand out product in the field of aerial photography.

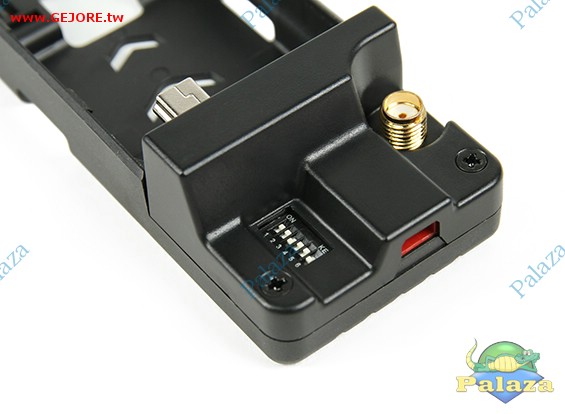

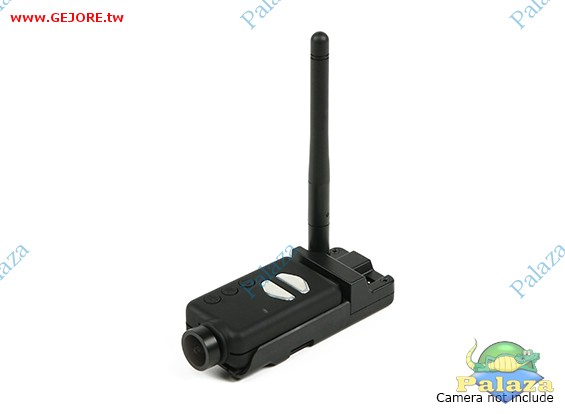

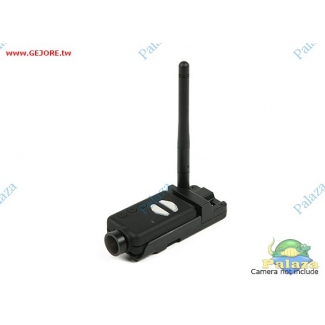

The Mobius docking station takes the ActionCam to a new level and makes it even more versatile. Now its plug and play FPV ready with the FPV dock. It can now transmit the live video to a receiving ground station via the docking stations built-in 5.8GHz 32ch 200mW mini transmitter. The Mobius simply slides into the docking station and locates onto the mini USB connector on the end of the Mobius and then firmly clips into the holder at the lens end.

The docking station will accept an incredible wide range of voltages 2~4s， from the built in JST female connector for easy connection of the supply/charging voltage.

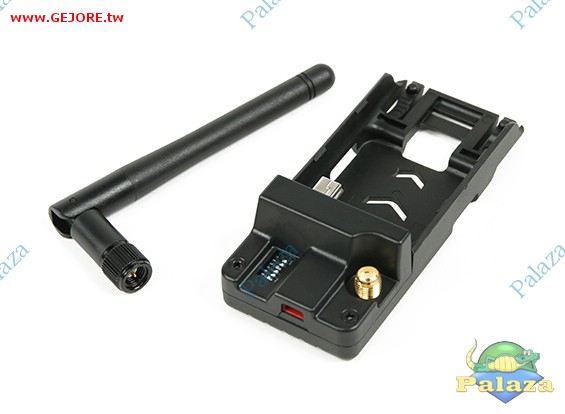

The 5.8GHz 32ch 200mW transmitter is compatible with Fatshark， Skyzone and other receivers that operate on the 5.8GHz channels listed below. The docking station is supplied with an antenna that has an SMA connector， a Mobius connecting lead and a separate transmitter connector lead.

Features:
&bull。 Built in BEC to power and charge the Mobius
&bull。 Neat one piece installation of camera and transmitter
&bull。 Fatshark and Skyzone compatible
&bull。 Wide range of input voltages (2~4s)
&bull。 32 channels
&bull。 200mW RF power output
&bull。 Not affected by 2.4GHz radios
&bull。 Operating Range 1.5 kilometres (open areas)
&bull。 Strap mounting slots for quick and easy installation

Specs:
Transmitting Frequency: 5.6~5.9GHz (32ch)
Modulation: Wideband frequency modulation
Operating Voltage: 7~24V 2~4s
Supply Current: 110mA ±。10mA
Video Input Level: 1V ±。0.2Vp-p/75 ohms
Audio Input Level: 0.5~2.0Vp-p/10K ohms
TV System: PAL/NTSC/Secam (auto)
RF Output Power: 200mW (23dBm ±。0.05dBm)
Range: 1.5 kilometres
Antenna Connector: SMA
Weight (Docking Station Only): 30g
Weight (with Mobius): 76g
Dimensions: 30 x 20 x 8mm (exc antenna)
Operating Temperature: -10~+85°。C
Frequencies:
Group A: 。 5865/5845/5825/5805/5785/5765/5745/5725MHz
Group B: 。 5733/5752/5771/5790/5809/5828/5847/5866MHz
Group C: 。 5705/5685/5665/5645/5885/5905/5925/5945MHz
Group D: 。 5740/5760/5780/5800/5820/5840/5860/5880MHz

Includes:
Mobius ActionCam Docking Station
Antenna with SMA connector

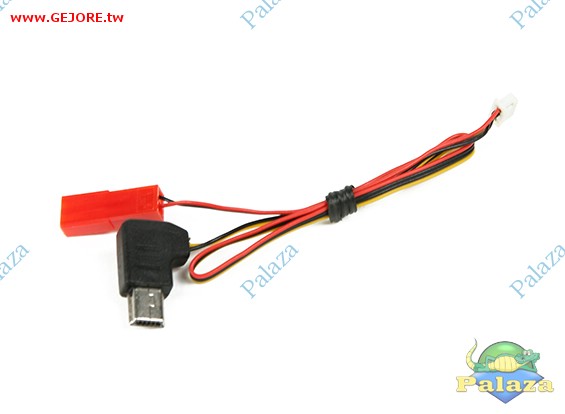

Mobius Wiring Harness
Spare Video Lead
 。
